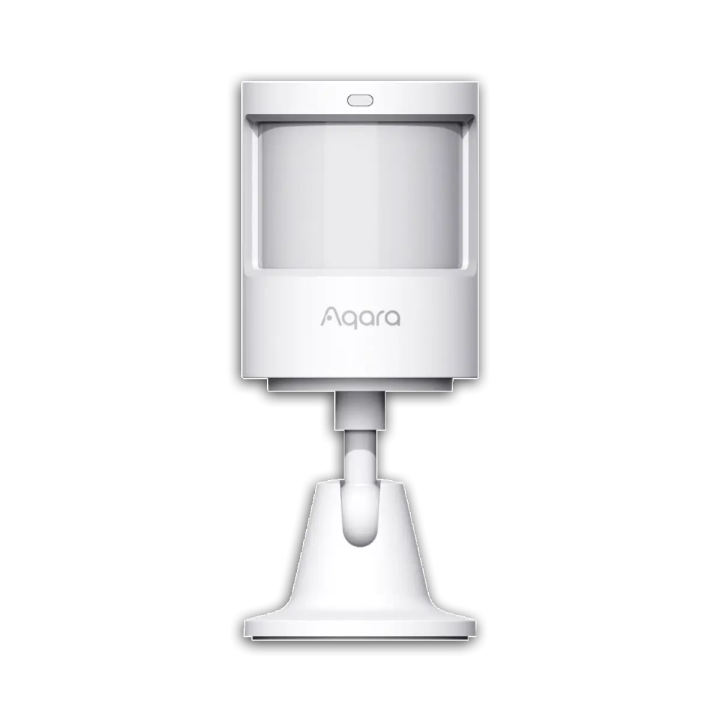

Aqara P1 Motion Sensor

This compact sensor detects both motion and ambient light levels, enabling intelligent automations such as turning on lights when someone enters a room or adjusting brightness based on daylight. It connects via Zigbee 3.0, ensuring fast, stable communication and compatibility with Aqara hubs and platforms like Home Assistant (via Zigbee2MQTT or ZHA).

Key Features

• Motion Detection with a wide 170° field of view and up to 7 meters range
• Ambient Light Sensing for daylight-based automations

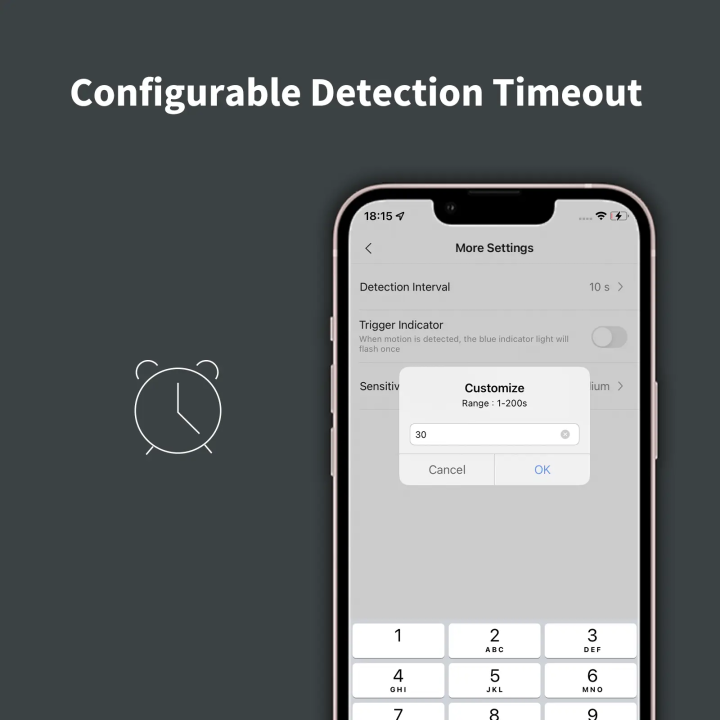

• Configurable Detection Timeout from 1 to 200 seconds
• 5-Year Battery Life using two CR2450 batteries
• Zigbee 3.0 Compatibility for fast, low-power communication
• Flexible Mounting with included stand, bracket, and adhesive
• Works with Home Assistant, Apple HomeKit, Alexa, IFTTT, and more

Technical Specifications

• Model: MS-S02
• Wireless Protocols: Zigbee 3.0
• Detection Angle: ≈170°
• Detection Distance: ≈7 meters
• Light Sensor: Yes
• Detection Timeout: Configurable (1–200 seconds)
• Battery Type: 2 × CR2450
• Battery Capacity: 1240mAh
• Operating Humidity: 0–95% RH (no condensation)
• Operating Temperature: -10°C to +55°C
• Battery Life: Up to 5 years
• Dimensions: 33.1 × 33.1 × 41.6 mm
• Mounting Options: Stand, bracket, adhesive
• Colour: White
