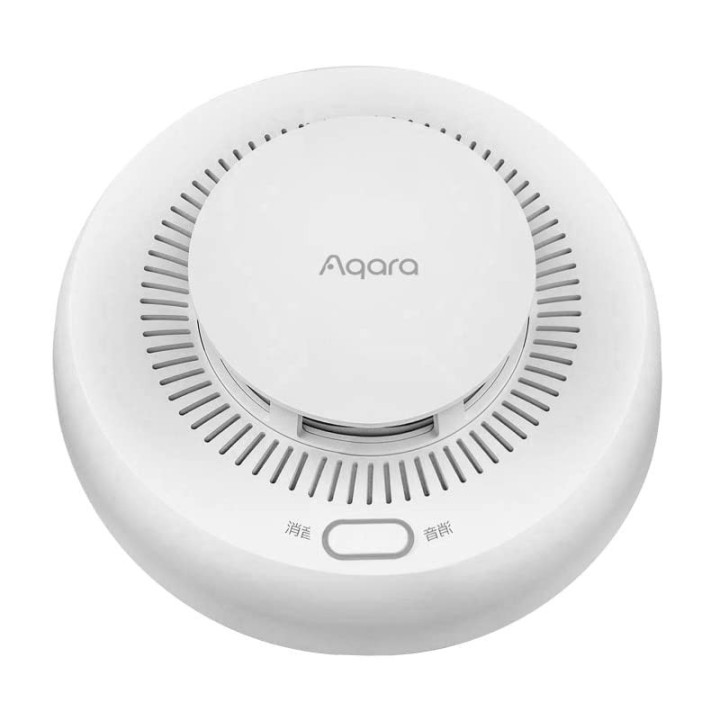

This sensor uses a photoelectric smoke detection mechanism to identify smoke particles in the air. When smoke is detected, the device triggers a built-in siren and sends alerts via Zigbee to connected hubs, which can then notify users through mobile apps or trigger automations such as shutting down HVAC systems or activating alarms.
The SD-S01D is powered by a CR17450 battery, offering long-lasting performance. Its compact design allows ceiling or wall mounting, and it complies with international safety standards for smoke detection.
Key Features
- Photoelectric smoke detection: Reliable detection of smoke particles.
- Built-in siren: Loud alarm for immediate local alerts.
- Zigbee 3.0 compatibility: Works with Aqara hubs and third-party Zigbee ecosystems.
- Smart automations: Trigger alarms, notifications, or safety routines when smoke is detected.
- Long battery life: Powered by CR17450 cell.
- Compact design: Easy ceiling or wall installation.
- Safety compliance: Meets international smoke detection standards.
Technical Specifications
- Model: SD-S01D
- Battery: CR17450
- Wireless Protocols: Zigbee 3.0
- Dimensions: 50 × 50 × 30 mm (approx.)
- Detection Method: Photoelectric smoke sensor
- Operating Humidity: 0–95% RH, non-condensing
- Operating Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Alarm Output: Built-in siren (≥ 80 dB)
- In the Box: Smoke detector ×1, mounting accessories ×1, user manual ×1
- Colour: White
