Sonoff TX Ultimate T5 3CH

The Sonoff TX Ultimate T5 3CH brings intelligent lighting control to the next level with its full-touch tempered glass panel, three independent channels, and dynamic LED ambient backlight featuring eight customizable effects. Designed to fit South Africa’s 120-type wall boxes and operate on 220–240V AC, it’s perfect for homes that want to automate multiple lights or appliances from a single, elegant interface.

This switch supports gesture control, allowing users to swipe or wave to trigger scenes or toggle devices without physical contact. It integrates with the eWeLink app for remote access and automation, and supports voice control via Amazon Alexa and Google Assistant. Whether you’re managing ceiling lights, wall sconces, and fans in one room or coordinating lighting across zones, the TX Ultimate T5 3CH delivers convenience, style, and smart functionality.

*Switches Require a Neutral Wire and 2.4Ghz Wi-Fi and Internet.

Key Features

• Triple-channel smart switch for controlling three separate lights or appliances
• Full-touch capacitive glass panel for smooth, responsive operation

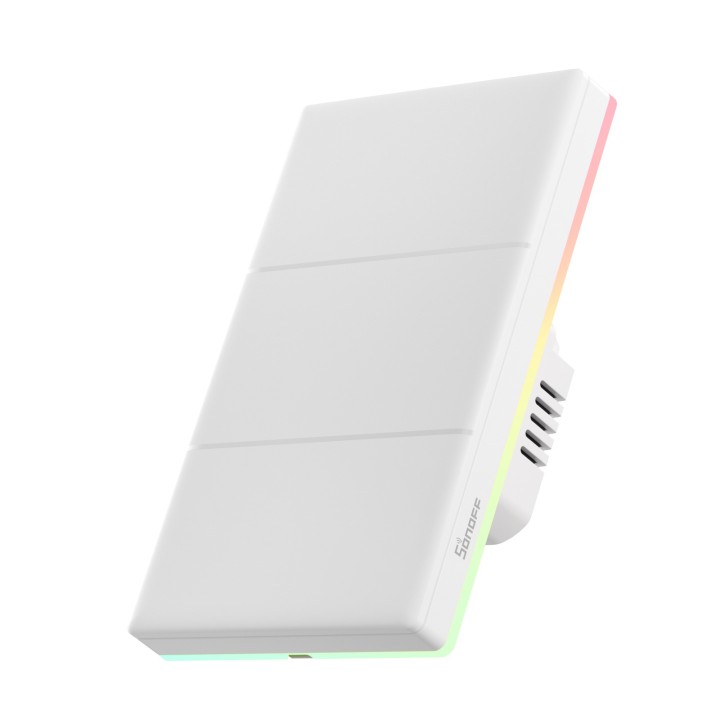

• LED ambient backlight with 8 customizable lighting modes
• Swipe gesture and palm detection for contactless control
• Remote access via eWeLink app (iOS & Android)
• Voice assistant compatibility with Alexa and Google Assistant
• Supports smart scenes, timers, and automation routines
• Designed for South African 120-type wall boxes and 220–240V AC systems
• Ideal for open-plan living areas, multi-zone lighting setups, or smart offices

Technical Specifications

• Model: TX Ultimate T5-120-3CH
• Channels: 3 (Independent Relay Outputs)
• Connectivity: Wi-Fi 2.4GHz
• Voltage Input: 100–240V AC, 50/60Hz
• Operating Temperature: -10°C to 40°C
• Max Load: 2A
• Panel Material: Tempered Glass
• Control Methods: Touch, Gesture, Palm, App, Voice
• LED Backlight Modes: 8 customizable lighting effects
• Wall Box Fit: 120-type (South African standard)
• Product Dimension: 120 × 74 × 38mm
• App Support: eWeLink (iOS & Android)
• Voice Assistant Support: Alexa, Google Assistant
• Colour: White
