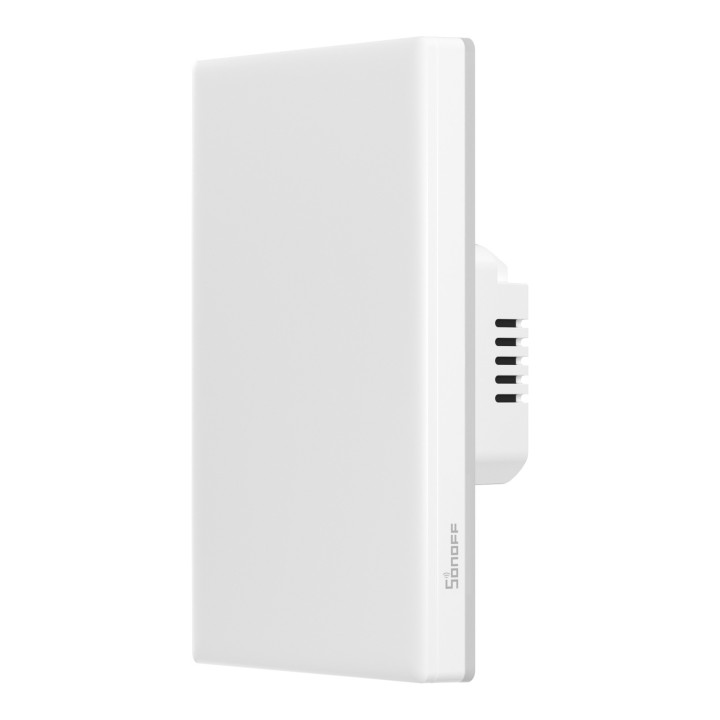

Sonoff TX Ultimate T5 1CH

The Sonoff TX Ultimate T5 1CH is a next-generation smart light switch that redefines how you interact with your home lighting. Designed to fit South Africa’s 120-type wall boxes and operate on 220–240V AC, this switch features a full-touch glass panel with a vibrant LED ambient backlight offering eight customizable lighting modes. It supports swipe gestures and palm activation, allowing users to trigger scenes or control devices with a simple hand movement — no physical contact required.

This switch integrates seamlessly with the eWeLink app, enabling remote control, scheduling, and automation. It also works with Amazon Alexa and Google Assistant, offering voice control for hands-free convenience. Whether you’re automating your lounge lights in Johannesburg or setting up a smart bedroom in Cape Town, the TX Ultimate T5 1CH delivers both style and functionality.

*Switches Require a Neutral Wire and 2.4Ghz Wi-Fi and Internet.

Key Features

• Dual-channel smart switch for controlling two separate lights or appliances
• Full-touch capacitive glass panel with smooth, responsive interface
• Dynamic LED ambient backlight with 8 customizable lighting modes
• Swipe gesture support for activating scenes or toggling devices
• Palm detection to toggle backlight without touching the panel
• Remote control via eWeLink app (iOS & Android)
• Voice assistant compatibility with Alexa and Google Assistant
• Supports smart scenes, timers, and automation routines
• Designed for 120-type wall boxes and 220–240V AC systems
• Ideal for living rooms, bedrooms, kitchens, or dual-zone lighting setups

Technical Specifications

• Model: TX Ultimate T5-120-1CH
• Channels: 2 (Independent Relay Outputs)
• Connectivity: Wi-Fi 2.4GHz
• Voltage Input: 100–240V AC, 50/60Hz
• Operating Temperature: -10°C to 40°C
• Max Load: 2A
• Panel Material: Tempered Glass
• Control Methods: Touch, Gesture, Palm, App, Voice
• LED Backlight Modes: 8 customizable lighting effects
• Wall Box Fit: 120-type (South African standard)
• Product Dimension: 120 × 74 × 38mm
• App Support: eWeLink (iOS & Android)
• Voice Assistant Support: Alexa, Google Assistant
• Colour: White
